About Product
About This Product
The TNT IFT-200 program is an advanced microcontroller-based multifunction therapy unit designed for professional physiotherapy clinics, sports rehabilitation centers, and home healthcare. Combining IFT (Interferential Therapy), TENS (Transcutaneous Electrical Nerve Stimulation), MS (Muscle Stimulation), and Russian Current Therapy, this all-in-one system features 200 pre-programmed clinical protocols for targeted pain relief, muscle re-education, edema reduction, and tissue recovery.
Equipped with a clear LCD interface, biphasic pulse technology to prevent skin irritation, and independent parameter control, the MFTU-200 offers a safe, non-invasive electrotherapy solution for acute and chronic musculoskeletal conditions
Key Features & Functions
-
4 Electrotherapy Modalities in 1 Unit: Integrates IFT, TENS, Muscle Stimulation (MS), and Russian Current Therapy for multi-faceted pain and muscular treatments.
-
200 Pre-Programmed Treatment Protocols: Pre-configured settings covering IFT (P1–P100), Russian Current (P101–P120), TENS (P121–P175), and MS (P176–P200) for specific clinical conditions.
-
Deep Tissue Pain Management (IFT): Uses 2 kHz, 4 kHz, 8 kHz carrier frequencies to penetrate deep tissue, reduce inflammation, and accelerate healing.
-
Pain Gate & Endorphin Release (TENS): Dual-channel output with adjustable pulse width 50 -250 μ s and frequency (0-150 Hz) to block pain pathways and stimulate natural endorphins.
-
Muscle Conditioning & Rehabilitation (MS & Russian): Provides Galvanic, Interrupted Galvanic, Faradic, and Surge Faradic currents to address muscle atrophy, improve localized blood flow, and re-educate motor nerves.
-
Gentle Biphasic Pulse Trains: Alternating direction pulses reduce strain on muscles, lower the risk of skin irritation, and prevent premature muscle fatigue.
-
LCD Screen & Parameter Control: High-visibility LCD display showing program numbers, beat frequency, balance, and treatment duration ($5\text{--}30\text{ minutes}$).
Technical Specifications
| Parameter | Specification |
| Model |
MFTU-200 |
| Therapy Modes |
IFT, TENS, MS (Muscle Stimulator), Russian Current |
| Pre-Set Programs |
200 Pre-Programmed Clinical Protocols |
| TENS Specifications |
Dual Channel; Output 0-99 mA (zero to peak); Freq 0-150Hz, Pulse Width 0-250mu Modes: Burst, Continuous, Sweep |
| IFT Specifications |
Output Intensity 0-99mA (peak to peak); Carrier Frequencies 2 kHz, 4 kHz, 8 kHz ; Pulse Width 125 μ s; Modes: 4-Pole, 4-Pole Vector |
| MS Specifications |
Output Intensity 0-99mA (peak to peak); Frequencies: Galvanic, Interrupted Galvanic, Faradic, Surge Faradic; Pulse Width 125 μ s; Modes: Continuous, Surge |
| Power Supply |
Input Voltage 180-240 V AC, 50 Hz; Input Current 100-200 mA
|
| Treatment Timer |
Adjustable from 5 to 30 minuteswith auto-cutoff tone |

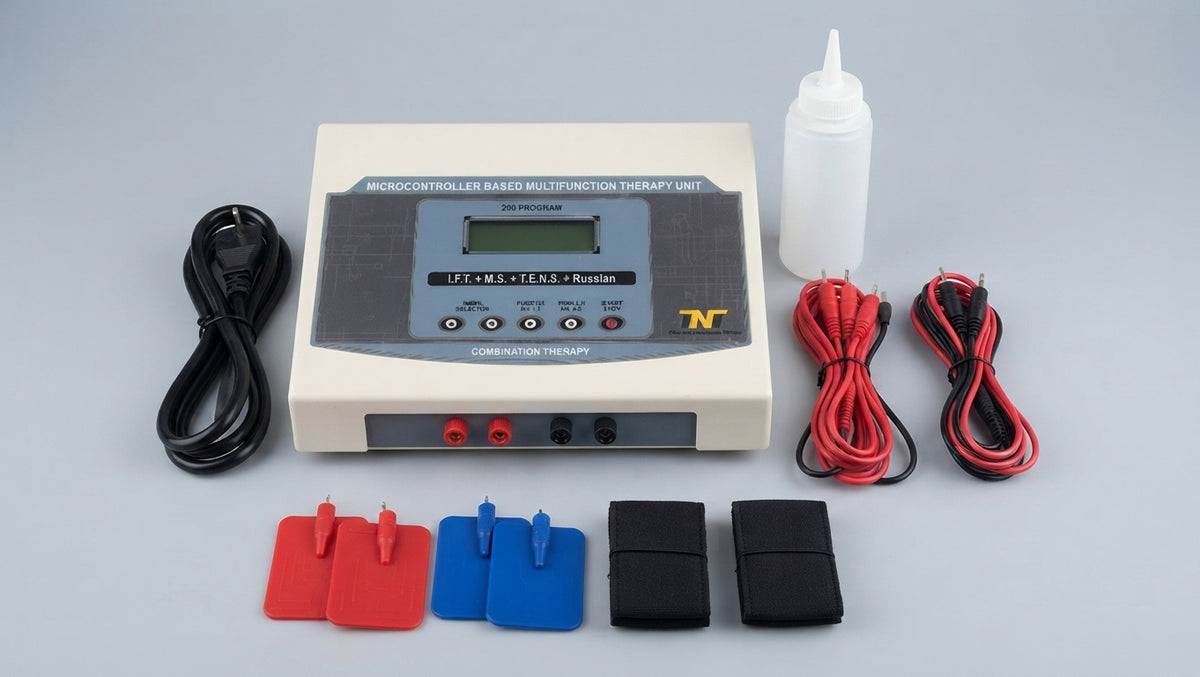

Package Includes
-
1 × 200 Main Unit Console
-
4 × Output Lead Wires
-
4 × Conducting Electrodes
-
1 × Elastic Belt Set
-
1 × AC Power Cord
-
1 × Conductive Gel Bottle
-
1 × Carrying Bag
-
1 × User Instruction Manual
Recommended Applications
-
Chronic & Acute Pain: Back pain, cervical spondylitis, sciatica, osteoarthritis, rheumatoid arthritis, and neuralgia.
-
Musculoskeletal Injuries: Tendonitis, bursitis, joint stiffness, sprains, and sports injuries.
-
Muscle Rehabilitation: Post-operative muscle re-education, muscle weakness, atrophy prevention, and facial palsy.
Safety & Warnings
Contraindications: Do not use on patients with cardiac pacemakers, implanted electronic devices, or during pregnancy over the abdominal area. Avoid placing electrodes across the chest, head/neck, or directly over malignant lesions.
