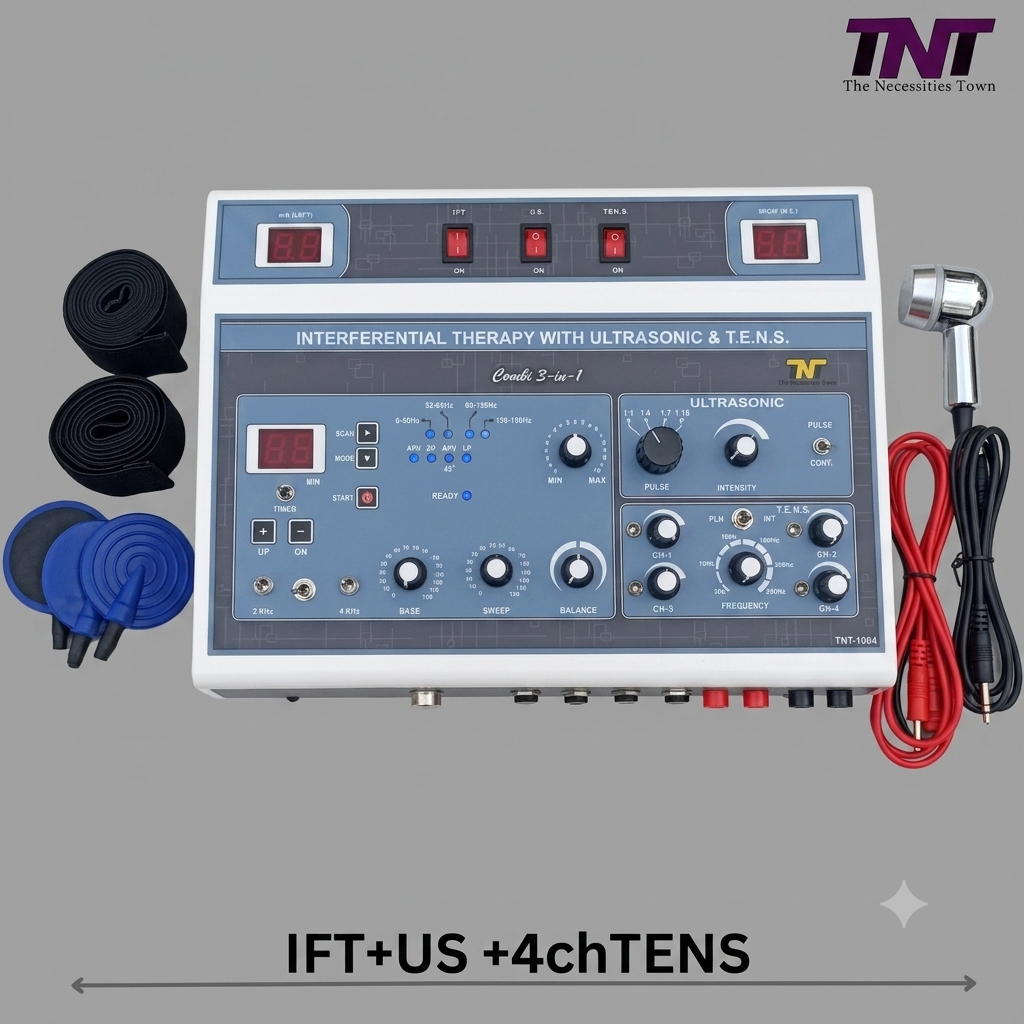

TNT 3-in-1 Combination Therapy Unit (IFT + US + 4-Channel TENS)

The TNT 3-in-1 Combination Therapy Unit (TNT-1084) is a versatile, professional-grade physiotherapy device combining Interferential Therapy (IFT), Therapeutic Ultrasound (US), and a 4-Channel Transcutaneous Electrical Nerve Stimulation (TENS) system into a single desktop console.

Designed for clinics, hospitals, and home rehabilitation settings, this unit allows healthcare professionals to treat acute and chronic pain, muscle spasms, soft tissue injuries, and joint inflammation simultaneously across multiple body areas. With independent frequency controls, multi-channel output, and digital displays, it delivers precise therapeutic outcomes for rapid patient recovery.

Key Features & Functions

• 3 Integrated Modalities: Combines IFT, Ultrasound, and 4-Channel TENS in one compact station for comprehensive electrotherapy and soft tissue treatment.

• 4-Channel TENS System: Features 4 independent output channels (CH-1, CH-2, CH-3, CH-4) allowing simultaneous treatment of up to 4 body areas or multiple patients.

• Therapeutic Ultrasound Unit: Includes a solid applicator head with selectable continuous and pulsed modes for deep thermal micro-massage and edema reduction.

• Advanced IFT Sweep & Base Controls: Dedicated controls for Base frequency, Sweep frequency, and Balance adjustments, supporting carrier frequencies ($2\text{ kHz}$ / $4\text{ kHz}$) and spectrum modes ($0\text{--}50\text{ Hz}$, $52\text{--}85\text{ Hz}$, $60\text{--}135\text{ Hz}$, $135\text{--}180\text{ Hz}$).

• Digital Interface & Countdown Timer: Built-in LED displays showing active timer and output parameters for precise dosage monitoring.

• Independent Output Switches: Dedicated power toggle switches for IFT, Ultrasound (U.S.), and T.E.N.S. allow individual or combined therapy modes.

  Technical Specifications

  Parameter	Specification
  Model Number	TNT-1084
  Therapy Modes	Interferential Therapy (IFT), Ultrasound (US), 4-Channel TENS
  TENS Output	4 Channels (CH-1, CH-2, CH-3, CH-4) with independent intensity controls
  TENS Frequency Range	Adjustable frequency selector (10Hz to300Hz}
  Ultrasound Modes	Continuous & Pulsed
  Ultrasound Duty Cycles	1:1, 1:4, 1:7, 1:10 ratio settings
  IFT Carrier Frequencies	2kHz/ 4 kHz selectable
  IFT Spectrum Ranges	0-50 Hz, 52-85Hz, 60-135 Hz, 135-180Hz
  Display	Multi-section digital LED display for treatment timer and channel intensity
  Timer	Digital electronic timer with UP/ON controls and Start/Scan keys

  Package Includes

  • 1 × TNT Combi 3-in-1 Main Console

  • 1 × Ultrasound Transducer Probe Applicator

  • 1X Ultrasound Gel bottle



  • 4 × TENS Output Cables / Leads


  • 8 X TENS Electrode Pads



  • 4 × IFT Output Cables / Leads


  • 4 X IFT Electrode Pads


  • 1 × Set Carry Bag

  • 1X Main Cord



  • 1 × Set of Elastic Securing Straps / Belts

  Clinical Applications

  • Pain Management: Sciatica, low back pain, cervical spondylitis, osteoarthritis, and chronic joint pain.

  • Sports Injuries & Rehabilitation: Muscle strains, sprains, ligament damage, tennis elbow, and frozen shoulder.

  • Tissue Recovery: Reducing post-traumatic edema, deep thermal massage, and localized circulation enhancement.
